Keeping warm, as nature intended

FLEXIFUEL Model FSA/15
Open circuit - Heating area, with plumbing kit

Description

Extra thick steel construction - Shell in extra thick galvanized steel - Insulation in mineral fibre - Digital multilanguage control panel - Prearrengement for external feeder - Fire grate in steel - Integrated combustible tank - Input device for thermostat or timer thermostat - Externally removable ash drawer - Flue cap in stainless steel AISI 316 whit itegrated damper - Flame guard door frame with sliding door coated with epoxy powder - Ceramic glass resistant up to 800 °C - Adjustable feet - Thermostatic combustion damper - Brazed plumbing kit - Glass protection - Fire poker - Installation manual - Without expansion chamber.

Technical data

Nominal power burned (pellets/wood) kW 7,3÷14,9/14,9
Nominal thermal transfer to fluid (pellets/wood) kW 4,2÷8,2/7,9
Nominal thermal transfer to space (pellets/wood) kW 1,8÷4,2/2,8
Boiler tank capacity lt 40
Max work pressure bar 2
Heatable area1 m2 60/120
Max consumption2 (pellets/wood) kg/h 1,5÷3,1/3,5

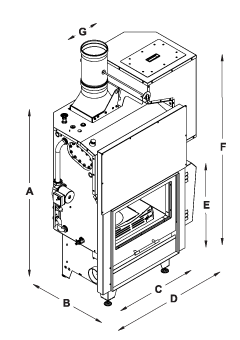

Dimensions

A B C D E F G Weight
1180 593 582 1010 608 1480 160 215

* Dimensions in mm - Weight in kg

FLEXIFUEL Model FSA/15
